Step-by-Step Guide to Configure Okta SAML SSO for Amazon Connect

Single Sign-On (SSO) for Amazon Connect using Okta can be deceptively tricky. While the individual components (Okta, IAM, SAML, and Amazon Connect) are all well-documented, the integration points between them are where most issues occur.

This guide walks through a working, end-to-end SAML 2.0 federation setup between Okta and Amazon Connect, including the IAM policies, roles, and Okta configuration required to avoid common “invalid SAML response” and sts:AssumeRoleWithSAML errors

Prerequisites & Assumptions

This guide assumes:

• You already have an Amazon Connect instance deployed in your AWS account
• When Amazon Connect was created, “SAML 2.0-based authentication” was selected
• You have administrator access to:
  • AWS IAM
  • Okta Admin Console

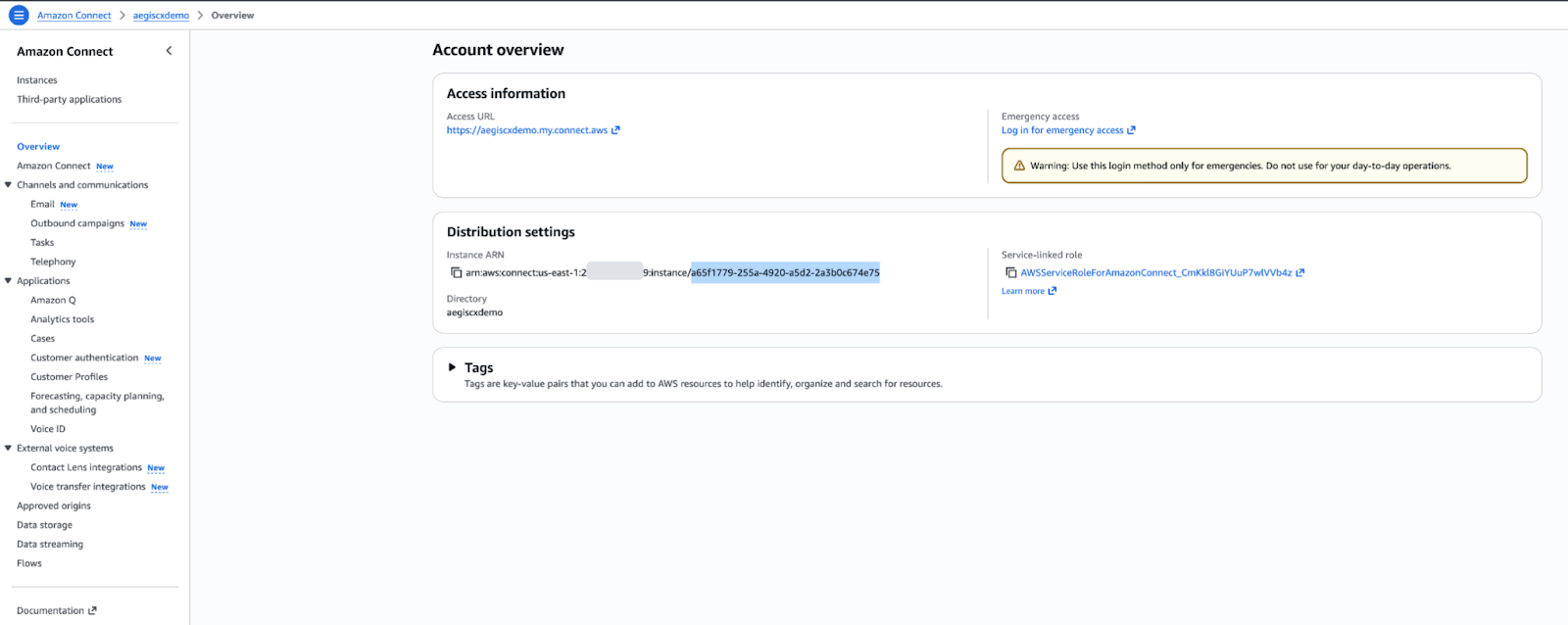

Step 1: Identify Your Amazon Connect Instance ID

1. Log in to the AWS Console
2. Navigate to Amazon Connect → Instances
3. Select your instance and copy the Instance ID

Example:

a65f1779-255a-4920-a5d2-2a3b0c674e75

You’ll use this ID multiple times throughout the setup.

Step 2: Create an IAM Policy for Amazon Connect Federation

Amazon Connect uses a federation token behind the scenes when users access the console via SAML. We must explicitly allow this.

Create a new IAM Policy

1. Go to IAM → Policies → Create policy
2. Choose JSON
3. Create a policy named:
   OktaFederationPolicy

{

"Version": "2012-10-17",

"Statement": [

{

"Sid": "Statement1",

"Effect": "Allow",

"Action": "connect:GetFederationToken",

"Resource": [

"arn:aws:connect:<aws-region>:<account-id>:instance/<connect-instance-id>/user/${aws:userid}"

]

}

]

}

Example:

{

"Version": "2012-10-17",

"Statement": [

{

"Sid": "Statement1",

"Effect": "Allow",

"Action": "connect:GetFederationToken",

"Resource": [

"arn:aws:connect:us-east-1:2##########9:instance/a65f1779-255a-4920-a5d2-2a3b0c674e75/user/${aws:userid}"

]

}

]

}

WhyThis Matters

Without this permission, SAML login may succeed but the Amazon Connect console will fail to load.

Step 3: Create the Okta Application (AWS Account Federation)

1. Log in to Okta Admin

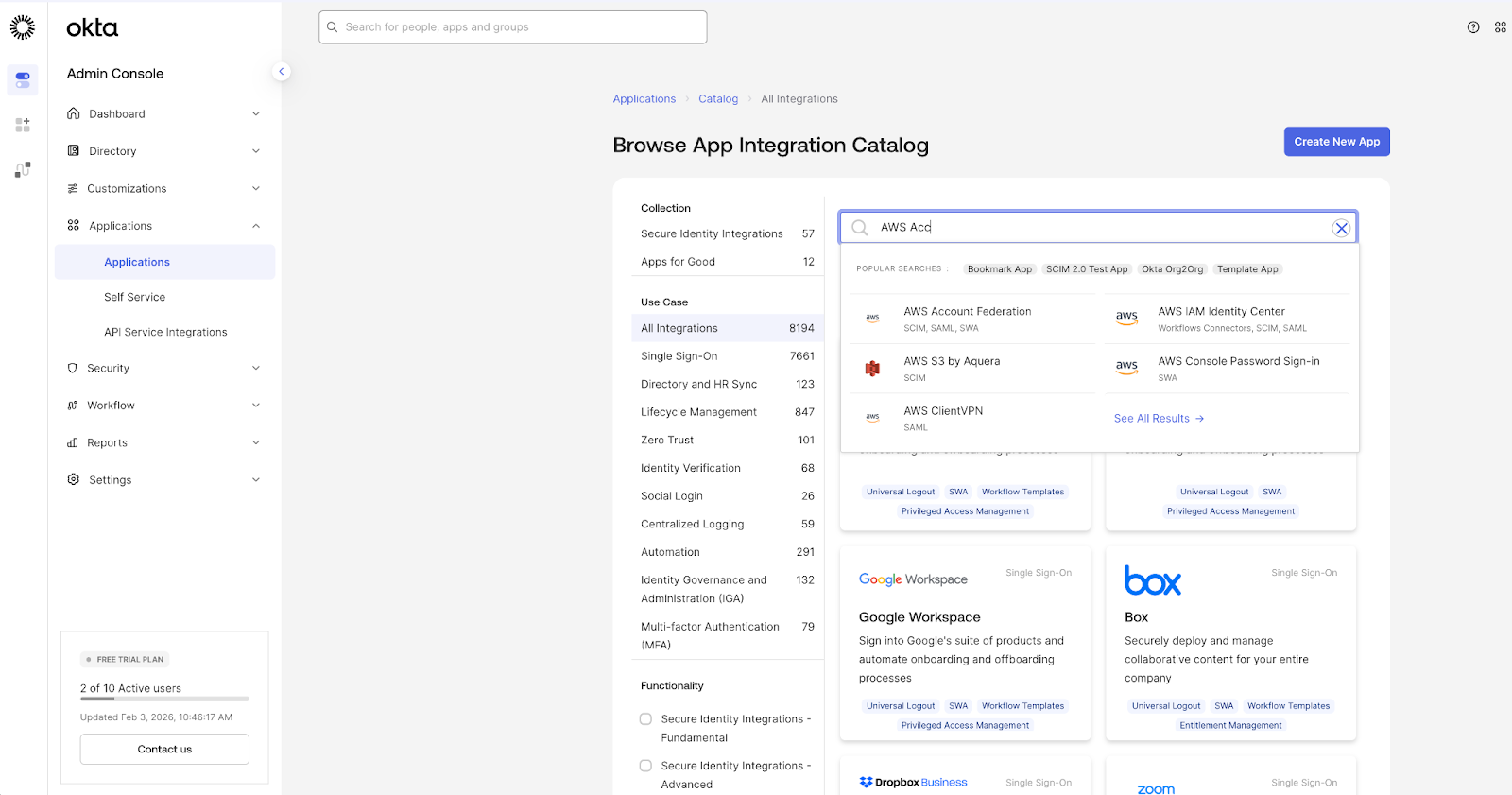

2. Go to Applications → Browse App Catalog
3. Search for “AWS Account Federation”

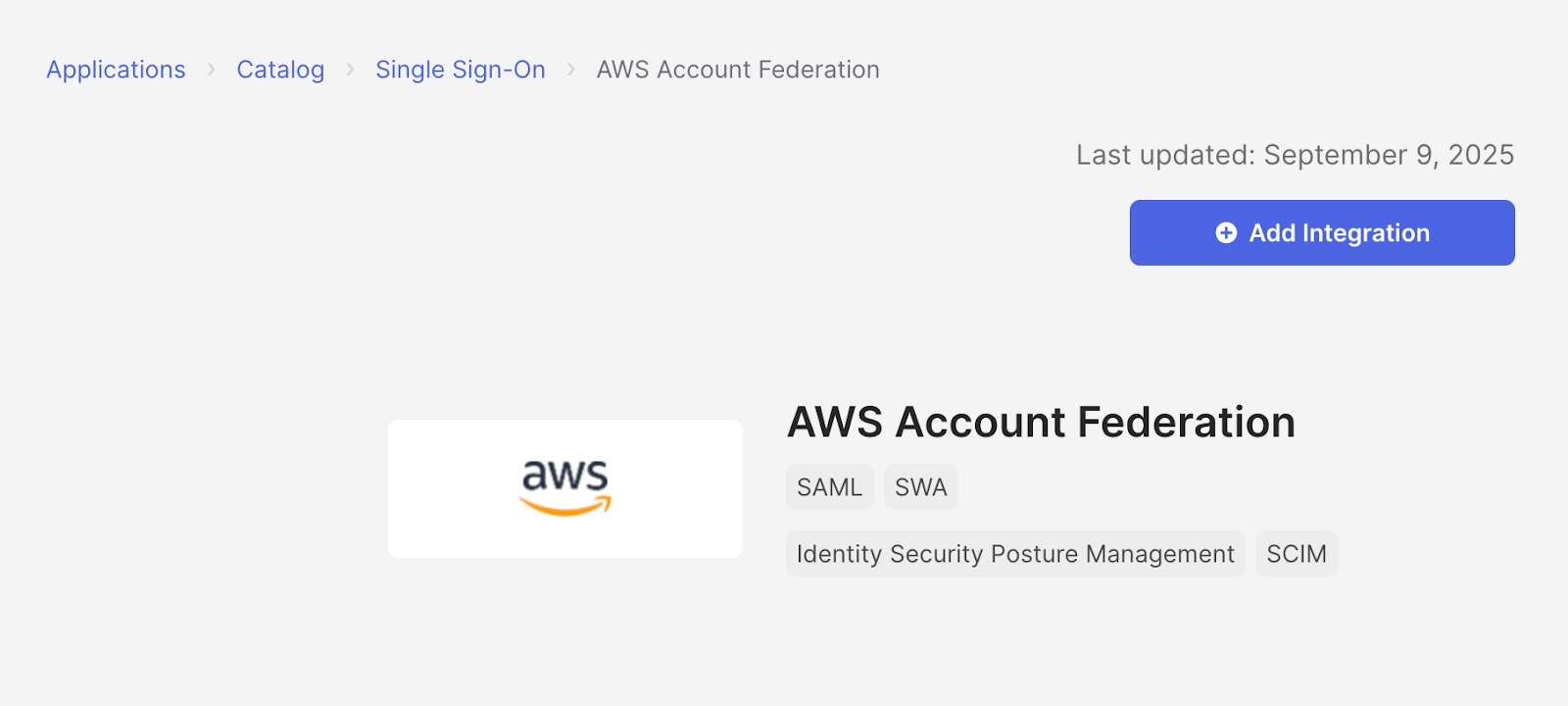

4. Click Add Integration

Application Settings

• Application name: Amazon Connect
• Sign-on method: SAML 2.0

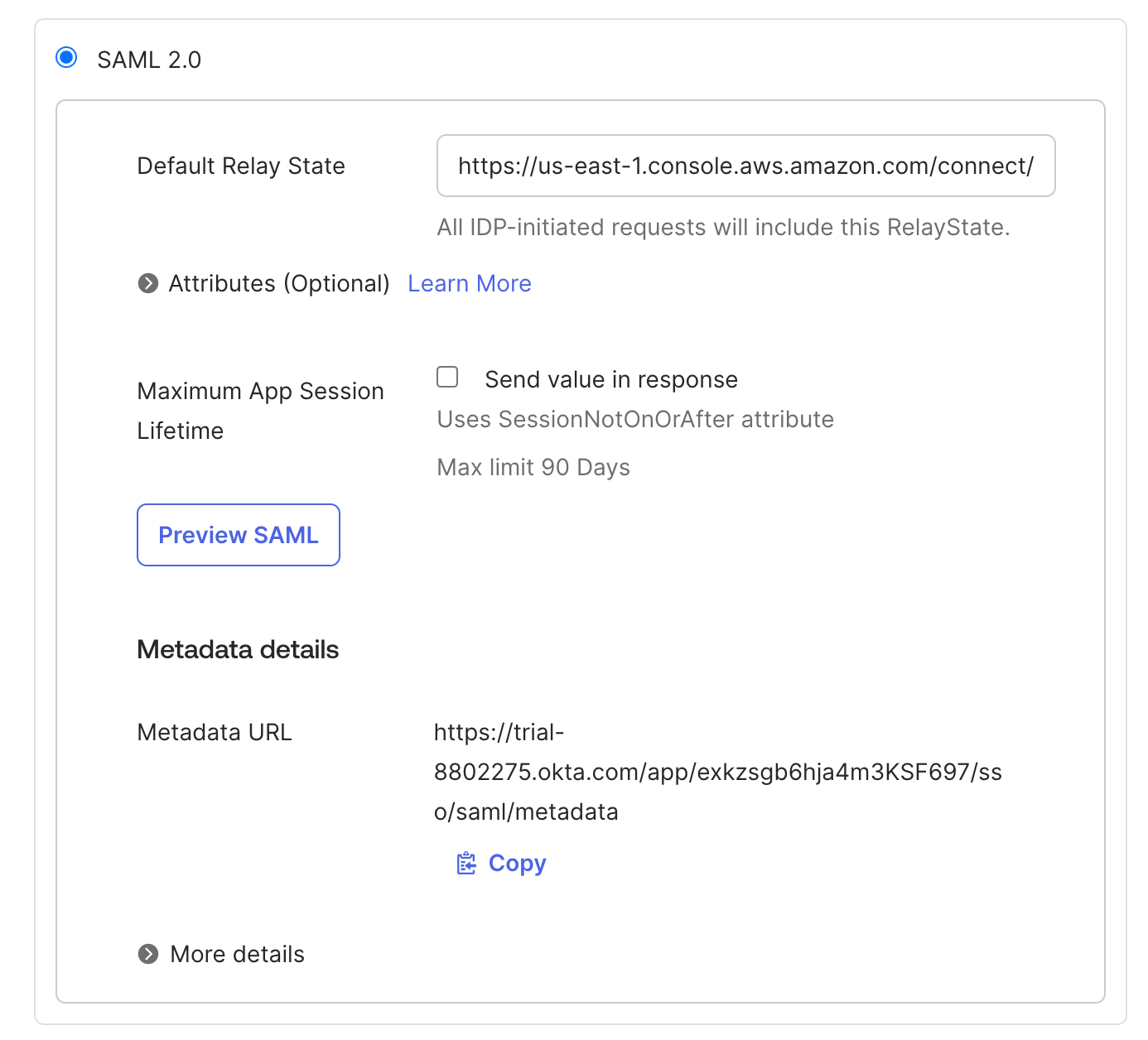

Step 4: Configure the Default Relay State (Critical)

In the Sign On tab:

Default Relay State

https://<region>.console.aws.amazon.com/connect/federate/<connect_id>

In Our example the value is:

https://us-east-1.console.aws.amazon.com/connect/federate/a65f1779-255a-4920-a5d2-2a3b0c674e75

Step 5: Download Okta Metadata

1. Copy the Metadata URL
2. Open it in a new browser tab
3. Save the resulting file as metadata.xml

You’ll use this to create the IAM SAML provider. Now Save your Okta application configuration.

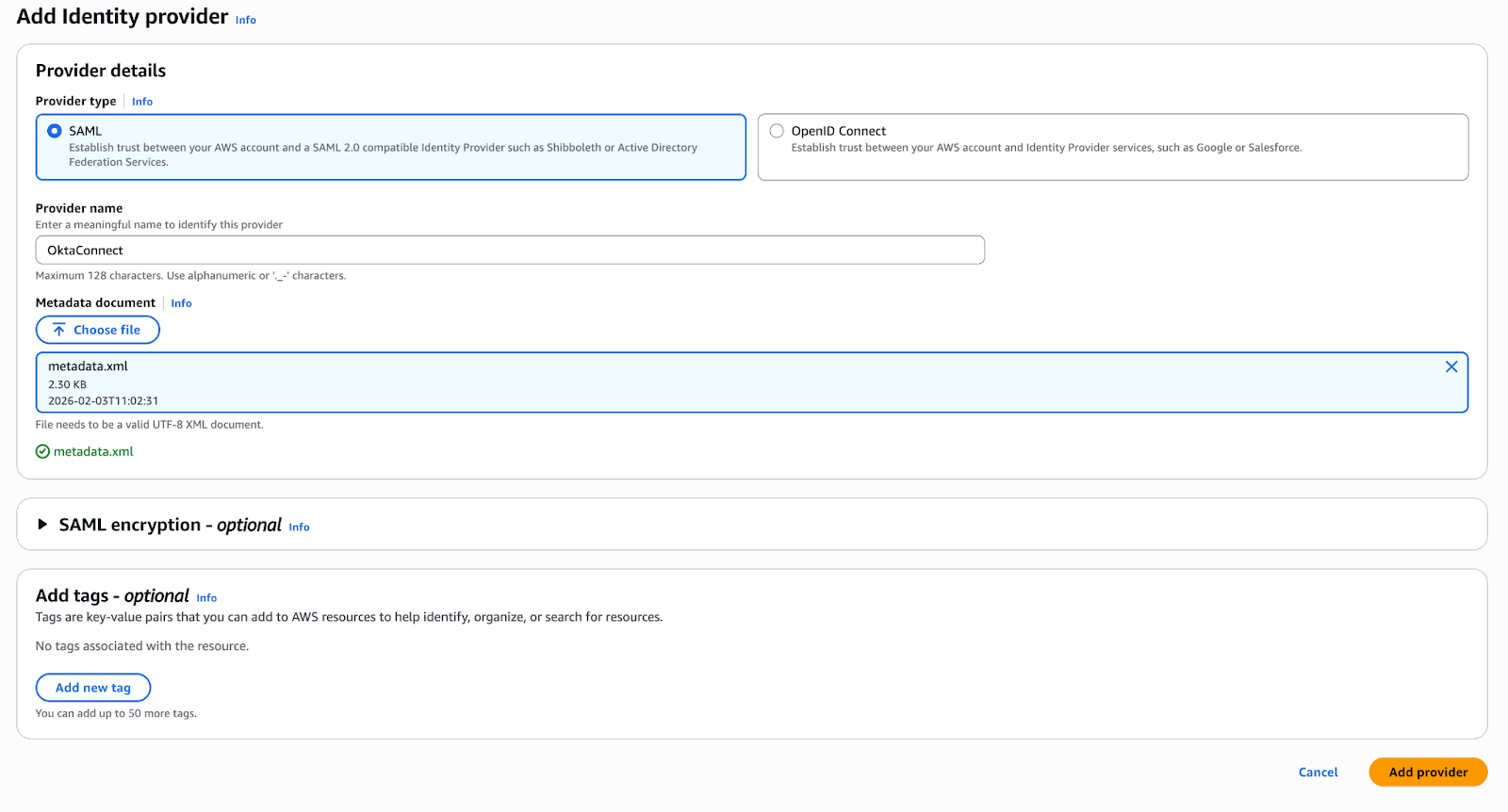

Step 6: Create the IAM SAML Identity Provider

1. Go to IAM → Identity providers → Add provider
2. Provider type: SAML
3. Upload metadata.xml
4. Name the provider (example):
   OktaConnect


Copy the generated ARN:

arn:aws:iam::2##########9:saml-provider/OktaConnect

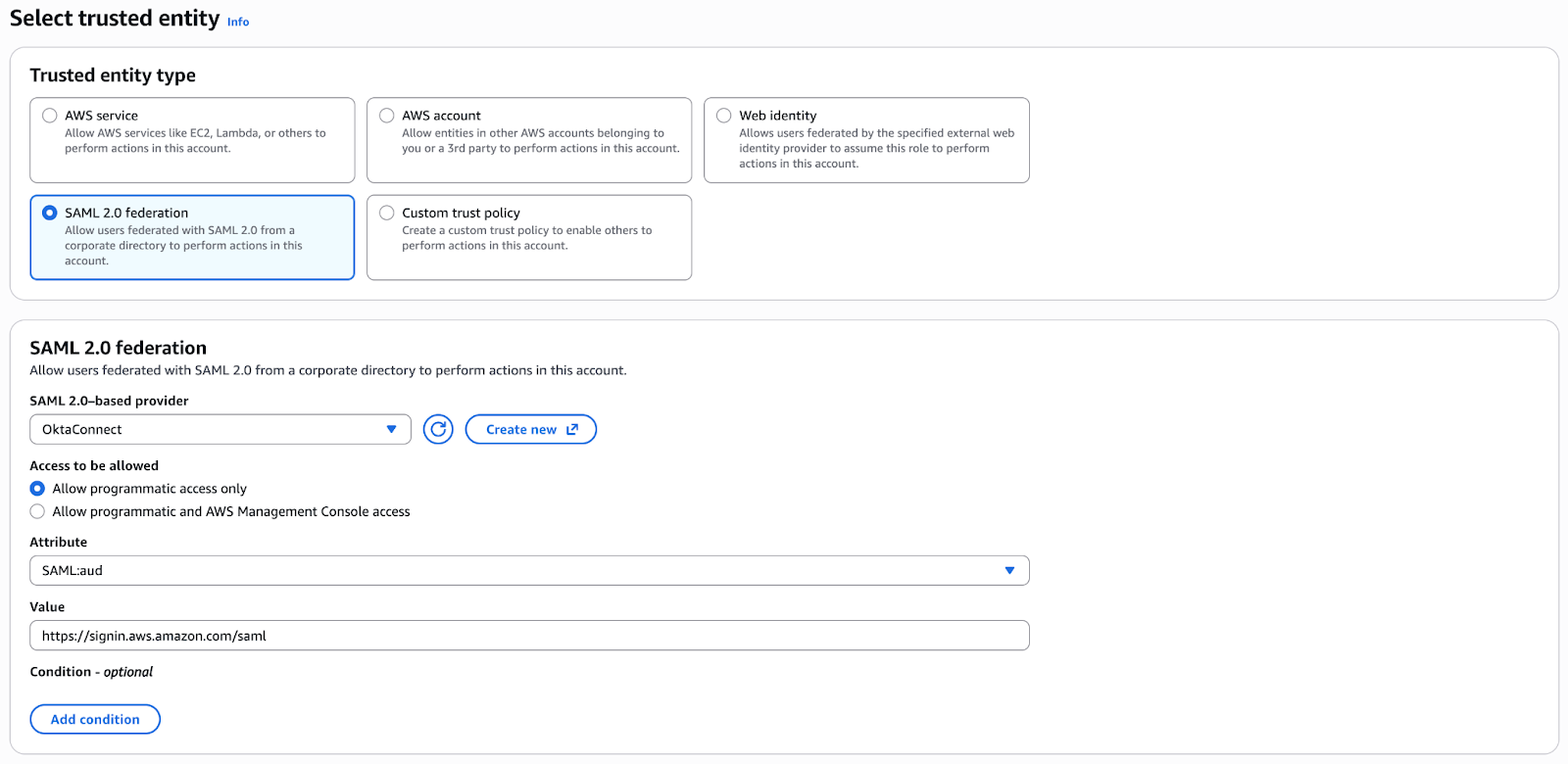

Step 7: Create the IAM Federation Role

1. Go to IAM → Roles → Create role
2. Trusted entity type: SAML 2.0 federation
3. Choose the OktaConnect provider
4. Audience:

https://signin.aws.amazon.com/saml

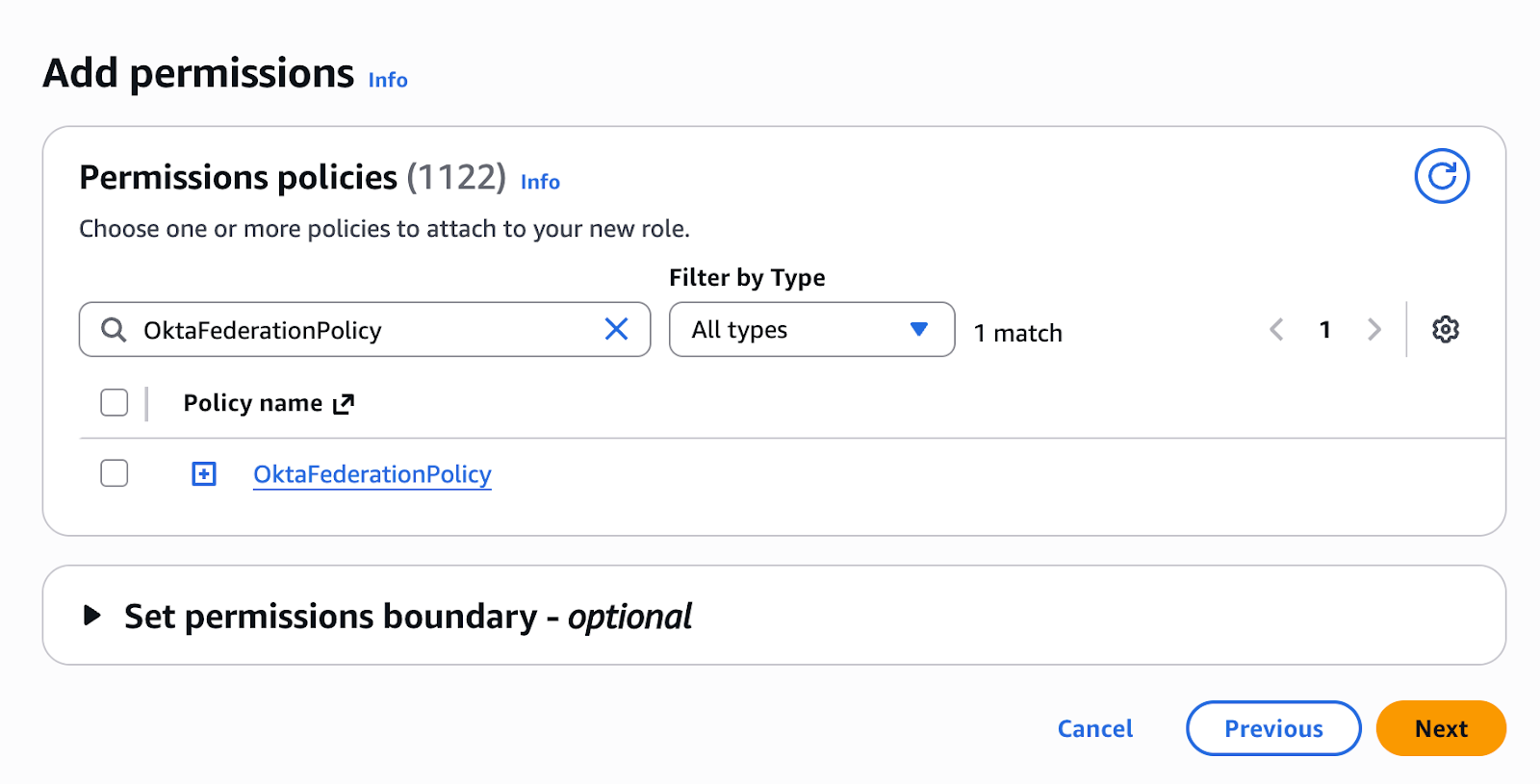

Attach permissions

• Attach OktaFederationPolicy

Role name:

OktaConnectFederationRole

Copy the role ARN:

arn:aws:iam::2##########9:role/OktaConnectFederationRole

Step 8: Final Okta Configuration (Most Common Failure Point)

Return to Okta → Application → Sign On → Edit

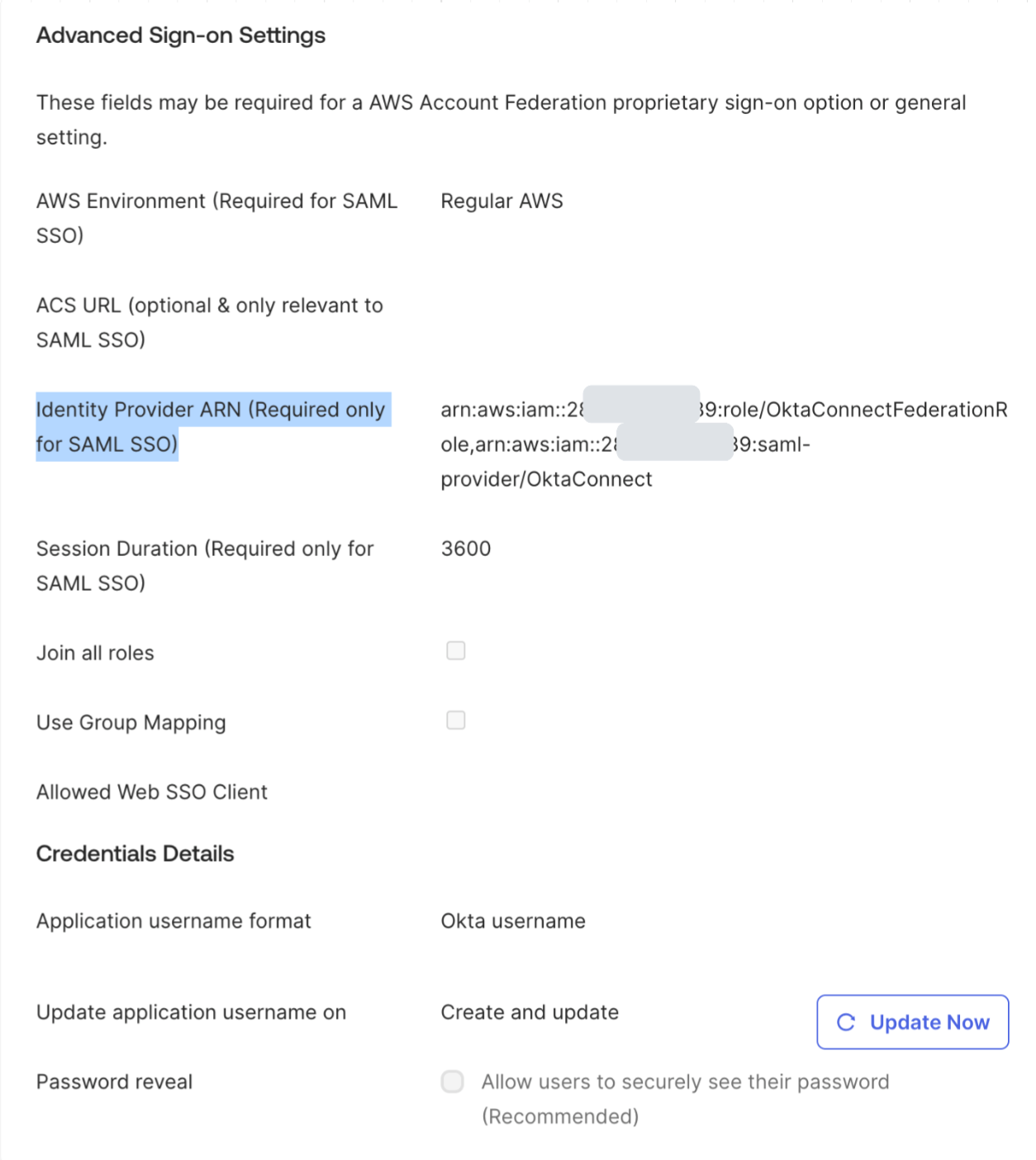

Advanced Sign-On Settings

Identity Provider ARN (Required only for SAML SSO)

This must ultimately result in a SAML Role attribute that contains two ARNs:

role_arn, saml_provider_arn

Example:

arn:aws:iam::2##########9:role/OktaConnectFederationRole,

arn:aws:iam::2##########9:saml-provider/OktaConnect

NOTE: If only the IdP ARN is provided, AWS will return:
“Your request included an invalid SAML response”

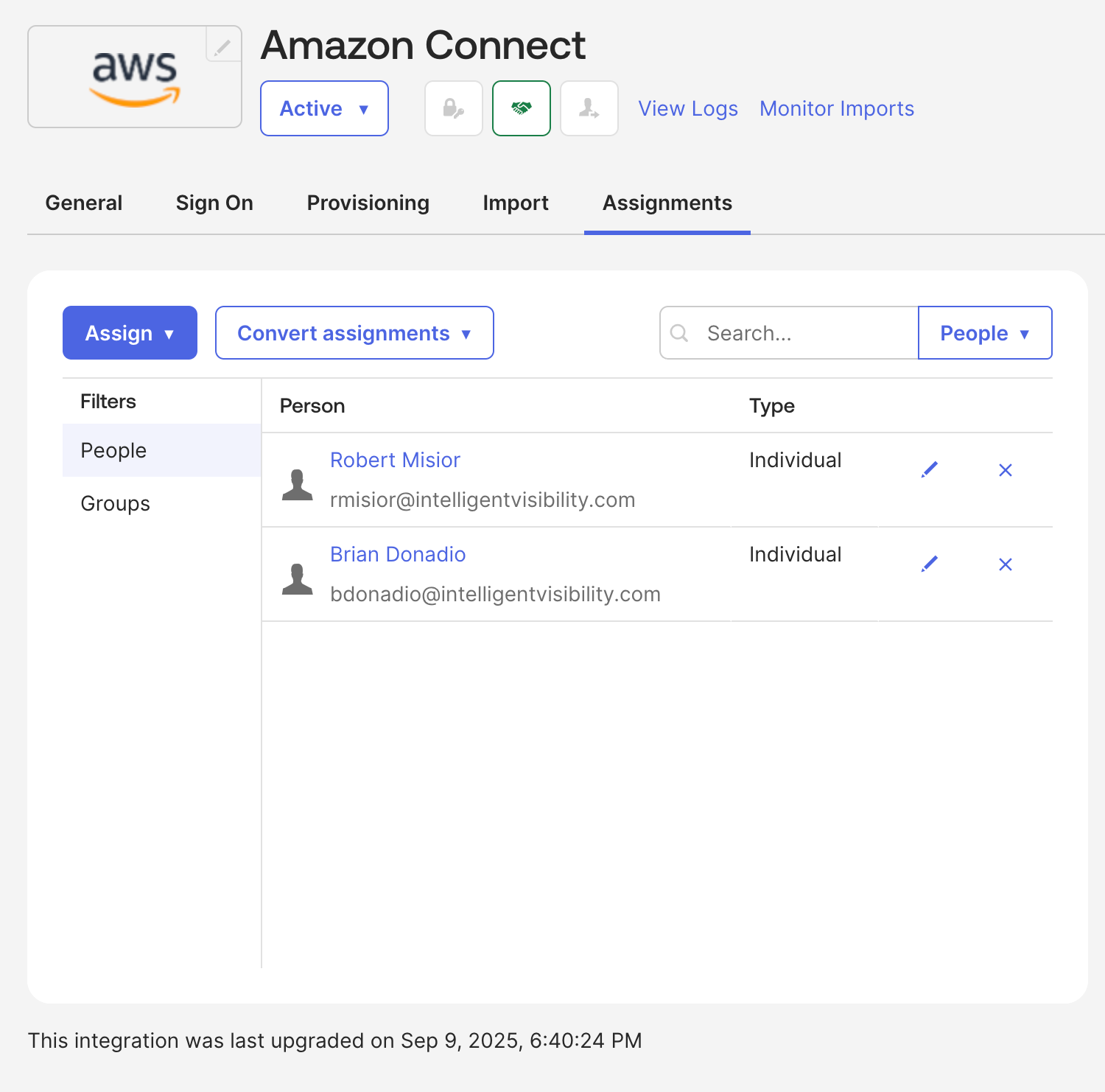

Step 9: Assign Users or Groups

• Assign users or Okta groups to the application
• Ensure:

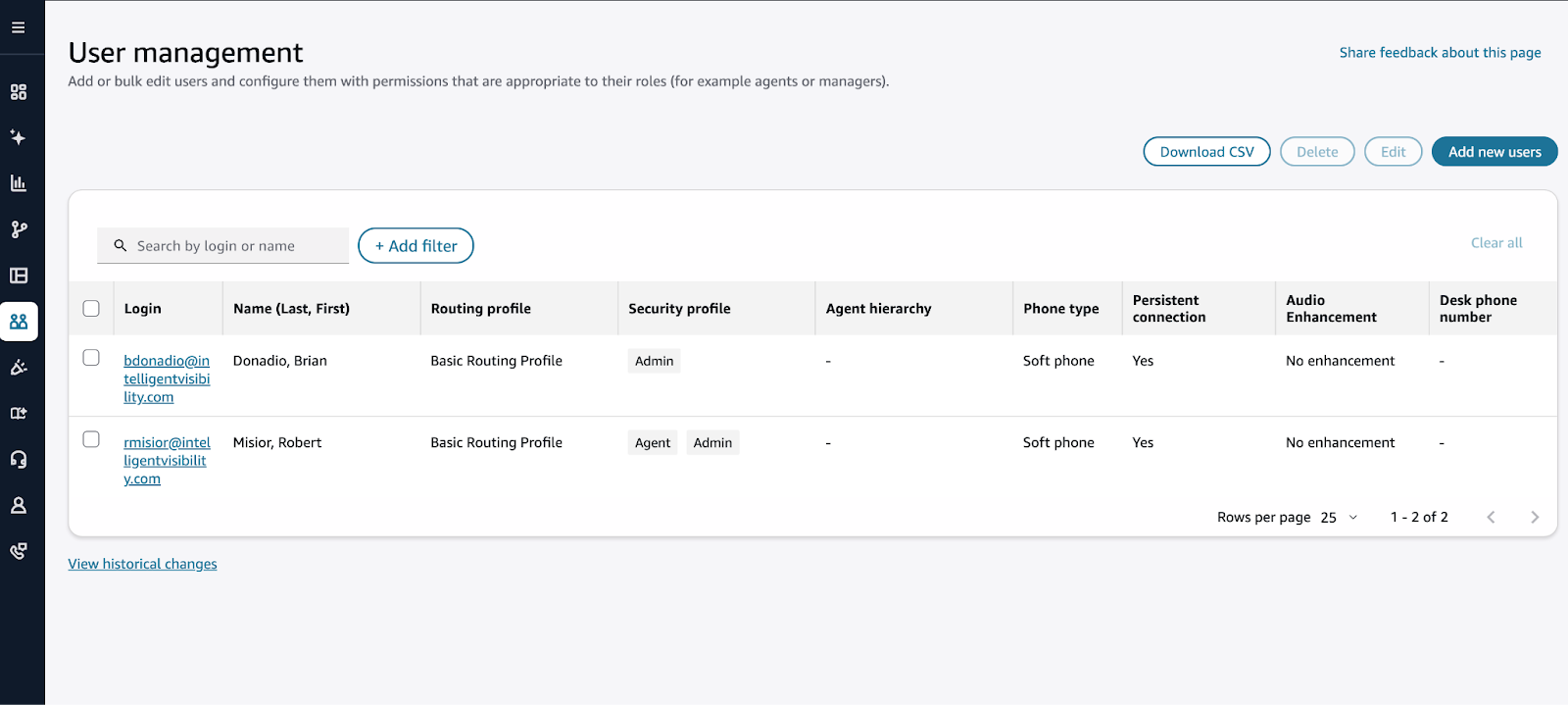

  • User emails match Amazon Connect usernames or
  • You have appropriate user mapping in Connect

Step 10: Assign Users or Groups

• Assign users or Okta groups to the application
• Ensure:
• User emails match Amazon Connect usernames or
• You have appropriate user mapping in Connect



Step 11: Test the Integration

1. Launch the app from Okta
2. You should be redirected to:

/connect/federate/<connect-id>

  3. Amazon Connect console should load without errors
